Cabin Plan 039-00034

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,805
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 2
Width 47'
Depth 40'

Floorplan Drawings

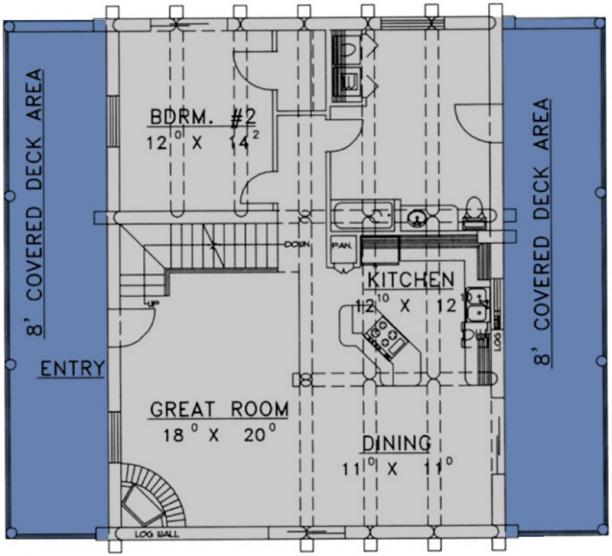

Main Floor
Main Floor  for House Plan #039-00034

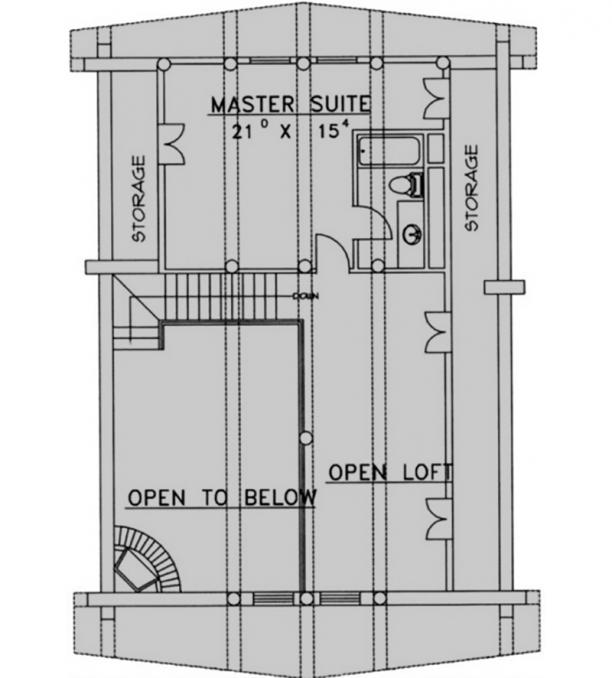

Second Floor
Second Floor for House Plan #039-00034

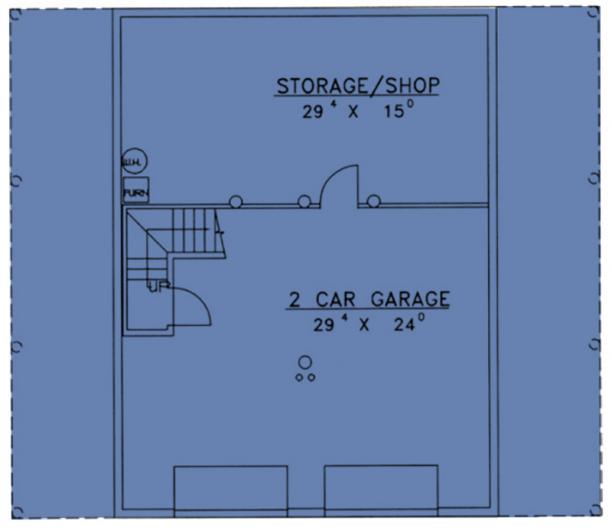

Garage/Basement
Garage/Basement for House Plan #039-00034


What's Included in these plans?

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.




Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This rustic A-frame home has outstanding design features such as log beams, floor to ceiling window walls and double covered porches. This floor plan is approximately 1,800 square feet with two bedrooms, two baths and a two car garage. The basement adds an additional 1,247 square feet of space which includes the garage area and a storage or workshop space measuring approximately 29’x15’. This space would be ideal for a mechanic or wood craftsman and offers a private retreat from the remainder of the home. This home makes an excellent choice as a small single family, a home for empty nesters or a vacation home. This home’s rustic features would be fabulous in either a mountain or lakefront setting where it could take full advantage of its architectural details and charming design features. Both the front and rear porch span the length of the home and provide the ideal spot for relaxing, star gazing or entertaining. From the covered front porch, you enter the expansive great room measuring 18’x20’ which features a corner fireplace and is open to the dining room. The stunning wall of windows spans the length and width of the dining room and is the focal point of the home. It provides a picturesque view to the outdoors and contributes to the overall effect of the home blending with its surroundings. You have access through the dining room to the rear covered deck and this would make an excellent space to have morning coffee, an evening meal or to read a book. The kitchen has a corner, angled breakfast bar, separate pantry and plenty of additional counter and cabinet space. A spacious bedroom lies on the main floor of the home and could also function as a guest suite. It contains a walk-in closet and access to a full bath. Additionally, there is a laundry nook located on the main floor of the home. At the top of the staircase, is the massive loft area which is perfect for a lounge, home office or study or an entertainment area. The loft and staircase are vast and open to the great room below which adds to the spaciousness of the space. The master suite is situated at the top of the staircase and is a truly stunning retreat. The master bedroom is expansive with gorgeous window views and the master bath has a shower/tub combination. On either side of the master bedroom are enormous storage areas which would provide an abundance of space for clothing or other paraphernalia. This home offers wide open common spaces perfect for entertaining and relaxing and a master suite that is both private and functional.
